Whether it’s just school purposes or real conference presentation, the Panasonic PT-VW430EA is a very powerful solution that gets this done.
Powered with laser technology that makes projection as simple task to be done as possible, the PT-VW430EA relays information right on a white screen or even anywhere.
The PT-VW430EA rank high in the portable projector category with their high brightness of 5,000 lm and 4,300 lm, respectively.
All models also incorporate a variable iris that produces a high contrast of 4,000:1 / 3,500:1.* This all combines to provide brighter, sharper projection for versatile situations.
The Panasonics Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.
This means whether you’re doing a presentation in an opened environment or just in a confined place with little light, the device can be set to adapt to whichever environment and it works like magic without any delay. The brightened color fits right well making the projection appear as though it was being viewed in a dark room.
The PT-VW430EA have a maximum lamp replacement cycle of 4,000 hours. This reduces maintenance hassles for long periods of use, and helps to lower maintenance costs and reduce environmental impact. Usage can vary based on the type of display being used and the environment.
But the normal range of power consumption of the device is usually great and can function on it’s own for good 4,000 hours. Although I can’t guarantee that as of now based on the fact that we never spent that long period with the device.
WORKS FINE WITH ANDROID/IOS

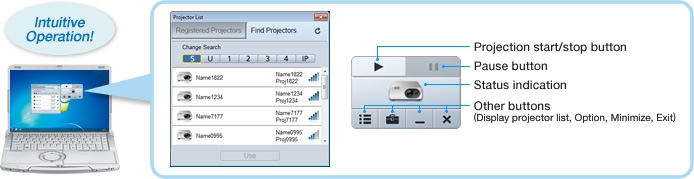

Two types of application software “Panasonic Wireless Projector for iOS” and “Panasonic Wireless Projector for Android” are available for wireless data transmission from an iOS or Android device. They let you connect to a wireless-ready Panasonic projector to send and project PowerPoint, PDF, JPEG and other files.
This means you can easily project data stored on your tablet onto a large screen to share with others, allowing for a new form of highly engaging presentations. They can both be downloaded for free the iOS version from the AppStore, and the Android version from Google Play.

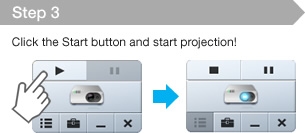

FIRST TIME SET UP
|General||Power supply||100 – 240 V AC, 50/60 Hz|
|Power consumption||365 W (0.3 W when standby mode set to Eco*1, 11.5 W when standby mode set to Network.)|
|LCD panel||Panel size||15 mm (0.59 inches) diagonal (16:10 aspect ratio)|
|Display method||TranspaTransparent LCD panel (x 3, R/G/B)rent LCD panel (x 3, R/G/B)|
|Pixels||1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels|
|Lens||1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62 mm|
|Lamp||280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours*2|
|Screen size (diagonal)||0.76-7.62 m (30-300 inch), 16:10 aspect ratio|
|Brightness*sup3/sup||4,300 lm (lamp power: Normal)|
|Center-to-corner uniformity*sup3/sup||85 %|
|Contrast*sup3/sup||3,500:1 (full on/full off, lamp power: Normal, Iris: On)|
|Resolution||1,280 x 800 pixels*4|
|Scanning frequency||HDMI||fH: 25-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower|
|RGB (analog)||fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.)|
|YPsubB/subPsubR/sub (YCsubB/subCsubR/sub)||fH: 15.75 kHz, fV: 60 Hz [480i(525i)] fH: 31.50 kHz, fV: 60 Hz [480p(525p)] fH: 45.00 kHz, fV: 60 Hz [720(750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i] fH: 15.63 kHz, fV: 50 Hz [576i(625i)] fH: 31.25 kHz, fV: 50 Hz [576p(625p)] fH: 37.50 kHz, fV: 50 Hz [720(750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]|
|Video/S-Video||fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]|
|Optical axis shift||Vertical: +48 %|
|Keystone correction range||Vertical: ±30° (±20° when Real-Time Keystone)|
|Built-in speaker||4 cm round shape x 1, output power: 10.0 W (monaural)|
|Terminals||HDMI IN||HDMI 19-pin x 1 (compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*5|
|COMPUTER IN 1||D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR)x 1]|
|COMPUTER IN 2 / MONITOR OUT||D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) (When Monitor Out is selected, the COMPUTER IN 1 signal is output.)|
|VIDEO IN||RCA pin x 1 (Composite VIDEO)|
|S-VIDEO IN||Mini DIN 4-pin x 1 (S-VIDEO)|
|AUDIO IN||RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input|
|COMPUTER 1 AUDIO IN||M3 x 1 (L-R x 1)|
|COMPUTER AUDIO IN 2 (MIC IN)||M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)|
|AUDIO OUT||M3 x 1 (L-R x 1) for output (variable)|
|SERIAL IN||D-sub 9-pin (female) x 1 for external control (RS-232C compliant)|
|LAN||RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (class 1))|
|Noise level||37 dB (lamp power: Normal), 29 dB (lamp power: Eco)|
|Cabinet materials||Molded plastic|
|Dimensions (W × H × D)||379 x 107 x 305 mm (14.9” x 4.2” x 12.0”) (with legs at shortest position, not including protruding parts)|
|Weight||Approximately 4.8 kg (10.6 lbs)|
|Operating temperature||0°C-40°C [32°F-104°F]*6 (less than 1,200 m [3,937 ft] above sea level, Fan control: OFF), 0°C-30°C [32°F-86°F] (between 1,200 m and 2,000 m [3,937 ft and 6,562 ft] above sea level, Fan control: ON1), 0°C-30°C [32°F-86°F] (between 2,000 m and 2,700 m [6,562 ft and 8,858 ft] above sea level, Fan control: ON2)|
|Operating humidity||20 %-80 % (no condensation)|
|Supplied accessories||Power cord x 1*8, power cord holder x 1, wireless remote control unit, batteries (AAA/R03/LR03 type x 2), carrying bag x 1, computer cable (1.8 m, for VGA) x 1 Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)|
|NOTE||*1. When the Standby mode is set to Eco, network functions such as standby on via LAN are not available. Also, only certain commands can be received for external control using the serial terminal.
*2.The values given for the recommended lamp replacement cycles are maximum.
*3.Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4.Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.
*5.Compliant with VESA CVT-RB.
*6.When the ambient temperature is between 35 °C and 40 °C (95 °F and 104 °F), the lamp power should be set to Eco.
*7.Not supported by IEEE802.11n.
